無紙化數位記錄器
產品型號名稱:Model 3410荷重元
OPTIONAL FEATURES：
●EEx ia IIC T6 hazardous area approval
●FM approval available
APPLICATIONS：
●Low profile platforms
●Pallet truck weighing
●Tank and silo weighing
DECRIPTION：

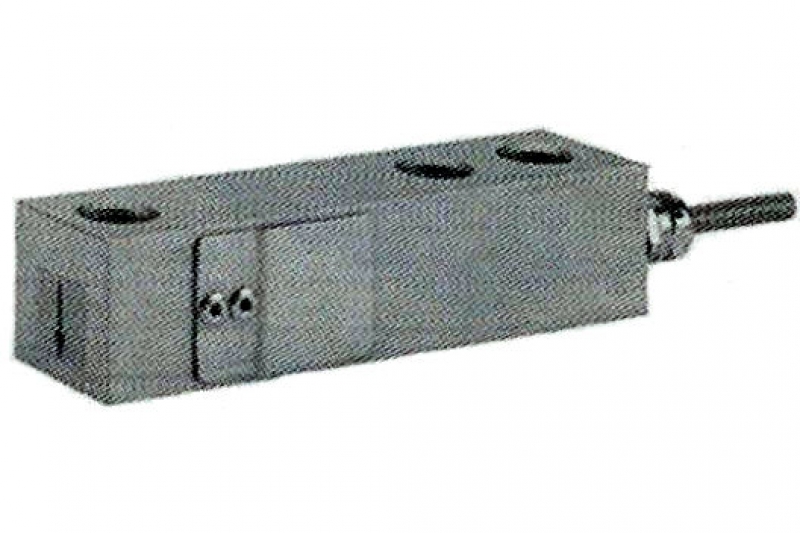

Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.
It has high immunity to shock or side loading and is available in 2 or 3mVN sensitivity. Approved to OIML, NTEP standards. For hazardous environments this load cell is available with EEx is IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments.

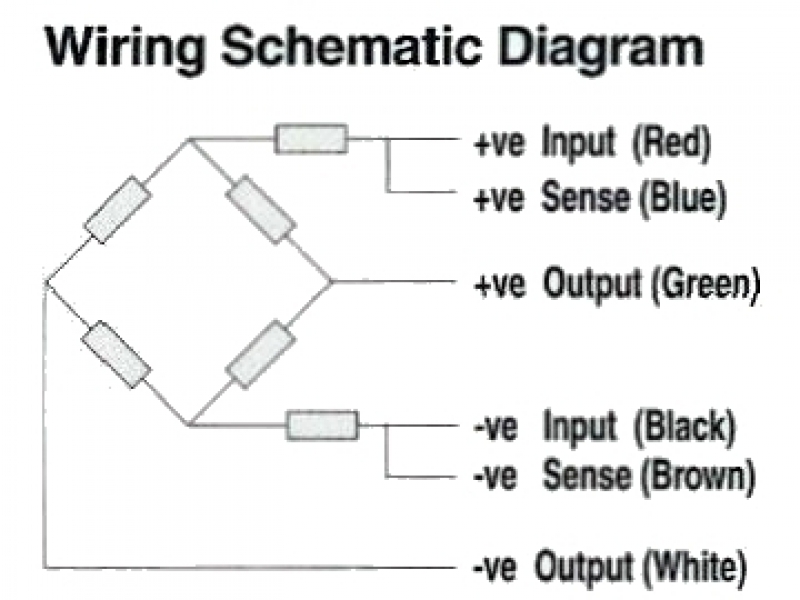

The two additional sense wires feed back the voltage reaching the load cell.Complete compensation of changes in lead resistance due to temperature change and/or cable extensionis achieved by feeding this voltage into the appropriate electronics.
