產品型號名稱:荷重元檢測儀 LCT-01
DECRIPTION：
The LCT-01 is a stand-alone portable hand-held device that was especially designed to help technical people immediately analyze the condition of strain-gage based load cells. The LCT fits all common types of load cells available in the market today: four wires. 6 wires (with sense) and all rated gain outputs.
The LCT provides the user with the essential data needed about the conditions of the tested load cell, such as physical distortion (possibly caused by overload, shock load or metal fatigue), and electrical conditions (bridge resistance, shielding and resistance to ground).

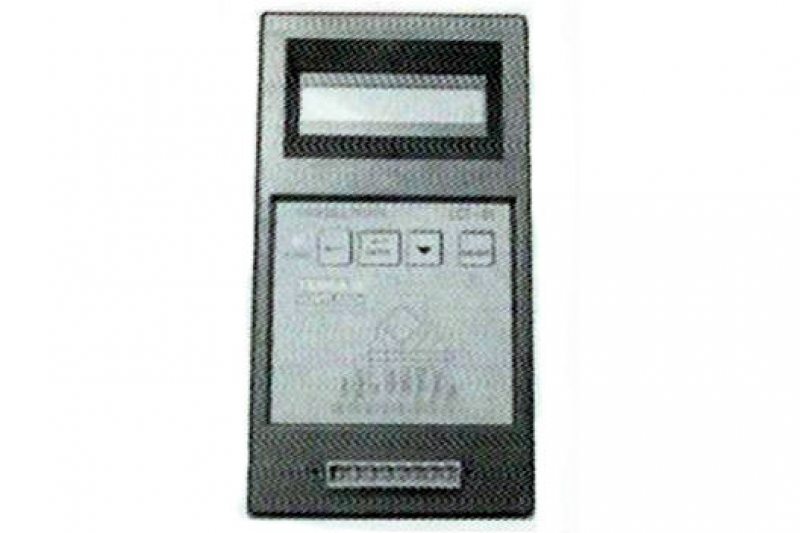

The LCT allows the user to test the load cell whether it is installed or removed. The unit is fully computerized and battery operated. A 16 x 2 alphanumeric LCD display guides the operator through all test stages and clearly displays the results. It is also equipped with a buzzer and LED which will alert the user as to any suspicious result.
The unit's three operation keys (plus an on/off switch) and concise messages on the display guide the user in a step-by-step fashion to it takes only a few minutes to learn how to use the LCT-01.
